CH-2100
Ultra-Sensitive NIR Fluorescence Immunoassay Analyzer

NIR-ll Precision lmmunoassay Platform

Laser Optics · Ultra-Sensitive

IR laser-driven for maximum precision and stability.

Compact Design · High ROI

Easy deployment anywhere with maximum cost-efficiency.

Rapid Results · High Throughput

Magnetic Bead and UltrasonicExtraction + Classic PCR = Precision

「CH-2100 | NIR-II Technology: A New Era
of Ultra-Sensitive Veterinary Immunoassays」

Purpose-built for veterinary practices, it completely eliminates sample background interference to deliver consistent, ultra-precise results for confident clinical decisions.

Proprietary NlR Nanospheres

Ultra-large Stokes shift and superior anti-interference.

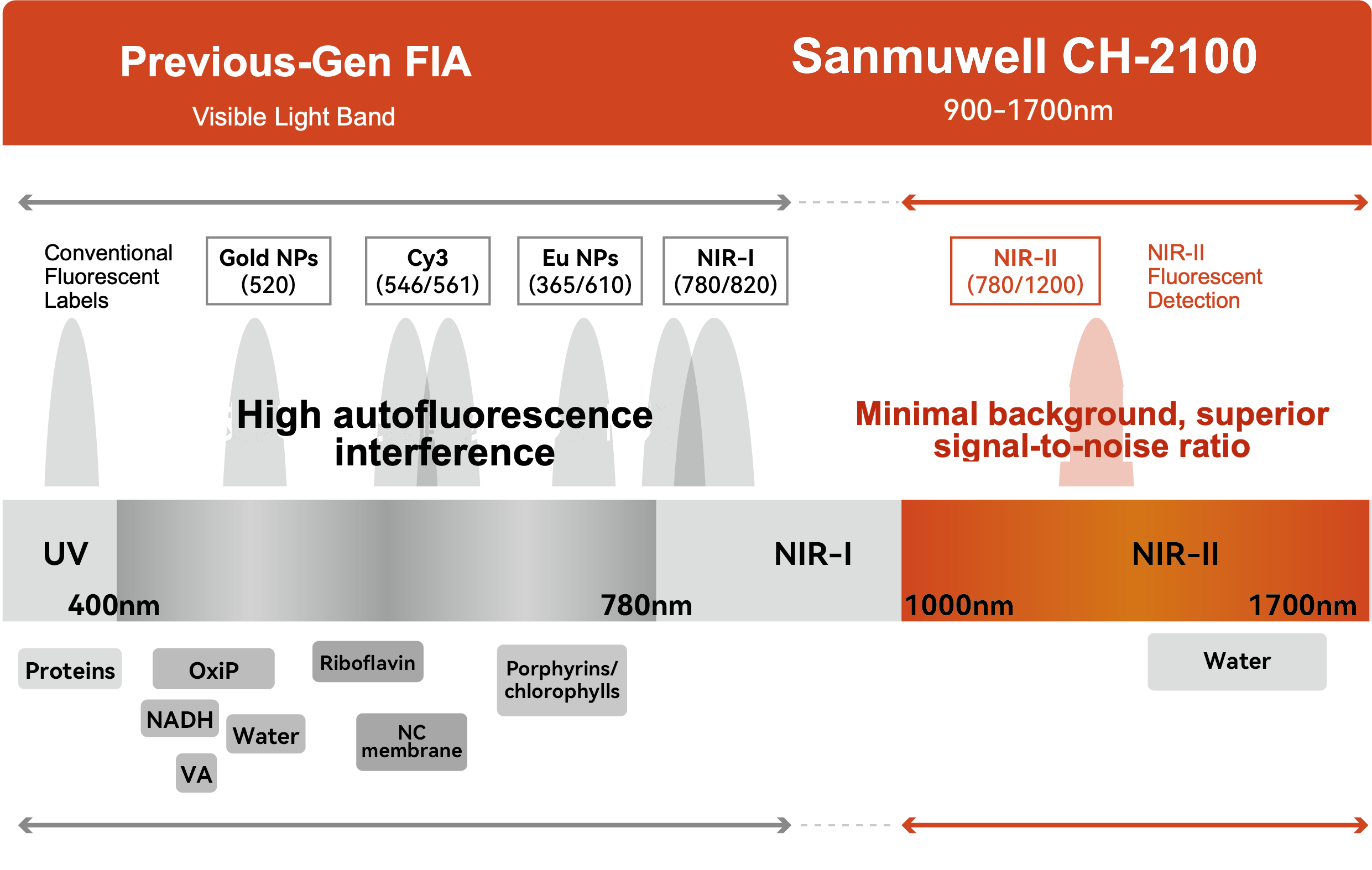

NIR-ll Window(1000-1700 nm)

Bypasses autofluorescence for ultra-high sensitivity & SNR.

3D Signal Capture

Deep lR penetration minimizes scattering for rock-solidstability

Need more information?

Our team is ready to answer your questions and provide the right solution.
Get in touch

Device Specifications

Parameter
Specification
Model
CH-2100
Detection Principle
NIR-II Dry Fluorescent Immunochromatography
Reading Speed
8-second scan; full results available in 3–15 mins
Channel
Single channel
Sample Types
Serum, plasma, whole blood, urine, feces
Sample Volume
Specimen input: 5–100 μL; Diluent loading: 100 μL
Reaction System
Pre-loaded test cassettes with fluorescent labels, capture antibodies and buffer system. Complete room-temperature (15–30°C, optimal 25°C) immunochromatography after sample loading
Test Menu Coverage
Infectious diseases, inflammatory markers, pancreatic, cardiac and renal biomarkers
Dimensions (W × L × H)
200 × 300 × 140 mm
Net Weight
2.0 kg
Power Supply
AC 100-240V，50/60Hz
Operating Environment
Indoor use, altitude ≤ 2000 m; Temp: 5–40°C; RH ≤ 80% non-condensing; voltage fluctuation within ±10% of nominal value
